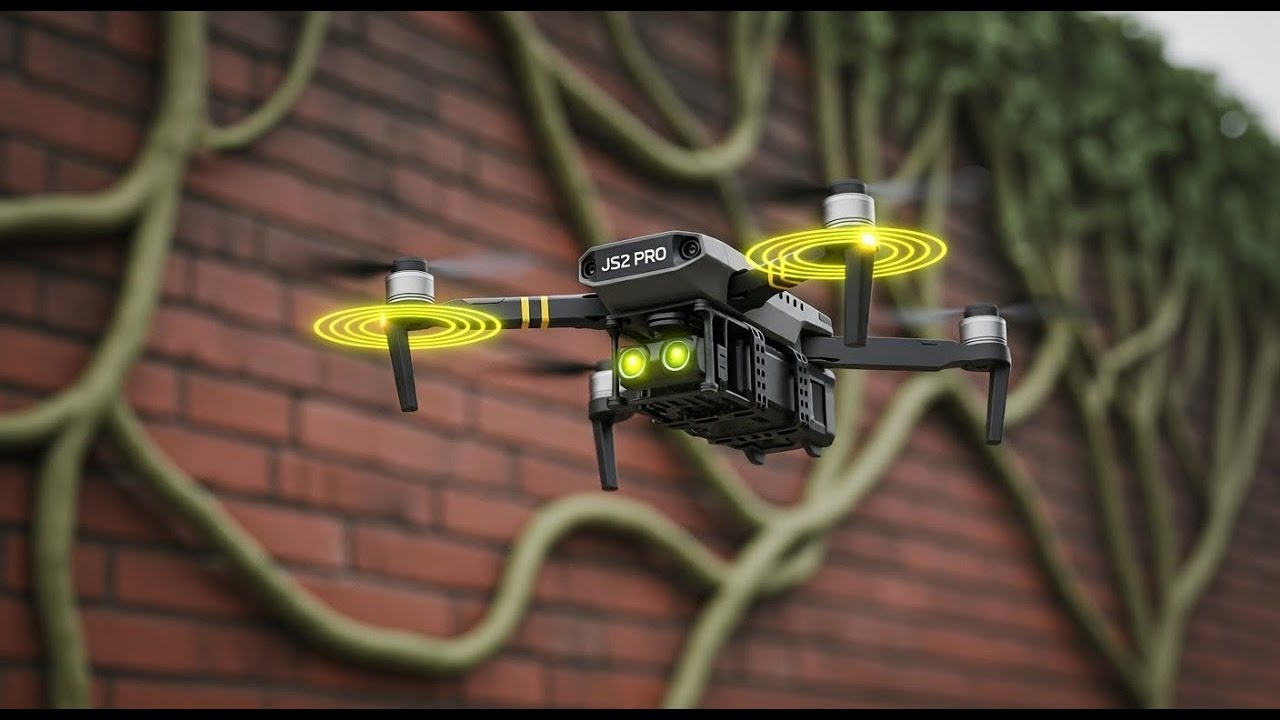

Flight Testing of JS2 PRO Quad copter Drone. #drone #usa #viral #viralvideo #automobile #upsc2025

Flight Testing of a Quadcopter Drone is a critical process used to evaluate the drone’s performance, stability, safety, and control under real-world flying conditions. This phase is essential for both development and validation of the drone before regular operation or commercial deployment.

✅ 1. Purpose of Flight Testing

1.Validate hardware and software integration
2.Verify aerodynamic stability and control responsiveness
3.Test autonomous functions (e.g., GPS hold, return-to-home)
4.Evaluate battery performance and flight time
5.Identify and fix bugs or design flaws

🛠️ 2. Pre-Flight Preparation

Before actual flight tests, several ground-level checks and configurations are necessary:

a. Component Check
1. Motors, ESCs (Electronic Speed Controllers), propellers
2. Battery level and health
3. GPS, compass, IMU (Inertial Measurement Unit), barometer

b. Software Configuration
1. PID tuning for flight stability
2. Flight mode configuration (manual, altitude hold, GPS, etc.)
3. Failsafe settings (loss of signal, low battery)

c. Calibration
1. IMU calibration
2. Compass calibration
3. ESC and radio calibration

🚀 3. Types of Flight Tests

Flight testing usually progresses from basic to advanced tests:

a. Hover Test
1. Assess if the drone can take off and hover in place
2. Observe for any vibrations, drift, or instability

b. Manual Flight Test
1. Pilot manually flies the drone in different directions
2. Evaluate pitch, roll, yaw responsiveness

c. Stability & Control Test
1. Test reaction to disturbances (e.g., wind)
2.Analyze the performance of flight controllers

d. Waypoint or Autonomous Test
1. Programmed routes using GPS waypoints
2. Evaluate precision and reliability of path following

e. Failsafe Testing
Simulate signal loss or low battery
Ensure the drone returns home or lands safely

f. Endurance Test
Measure flight time under different payloads or weather conditions

📊 4. Data Collection & Analysis
Onboard sensors log flight data (e.g., altitude, speed, orientation)
Ground Control Software (e.g., Mission Planner, QGroundControl) logs telemetry
Post-flight analysis identifies issues like:
PID instability
Motor imbalance
Power drops
GPS anomalies

🧪 5. Safety Considerations
Use open, legal flying areas
Maintain line of sight
Start with short flights and gradually increase complexity
Have emergency landing procedures in place

📈 6. Iterative Process

Flight testing is an iterative cycle:
1. Fly the drone
2. Analyze results
3. Modify hardware/software
4. Re-test

This continues until the drone meets performance and safety benchmarks.
🧰 Common Tools Used
Flight controllers: Pixhawk, Betaflight, ArduPilot
Telemetry systems: 433 MHz or 915 MHz links
Ground Control Stations (GCS): Mission Planner, QGroundControl
Data loggers and analyzers: Blackbox, SD card logs

Summary
Flight testing a quadcopter is a structured and phased process aimed at ensuring that the drone performs safely and efficiently in real-world conditions. It bridges the gap between design and deployment, uncovering real-time behaviors that simulations or bench tests might miss.
